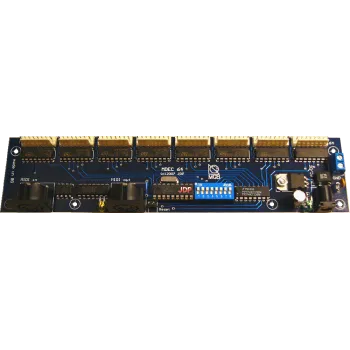

Midiboutique mdec64 MIDI decoder

MIDI-to-Parallel decoder with 64 TTL outputs

• 64 parallel TTL outputs capable to drive up to 10 TTL loads per output (TTL-compatible outputs can be used for direct driving of LEDs, considering current 5-7mA per LED (via current limiting resistors). For most common LEDs (rated for 10mA) such current is sufficient to emmit light enough)
• user selectable MIDI channel 1-16
• user selectable starting note 0-16 in steps of 4
• opto-insulated MIDI input
• MIDI Thru output
• recognizes MIDI Note On/NoteOff messages
• recognizes MIDI All Notes Off message
• supports Running Status and Zero-velocity
• recognizes and ignores System Exclusive and Realtimemessages as well
• user options (on request):
  • non-continuous note range
  • responding to other MIDI messages instead of Note On/Note Off messages
