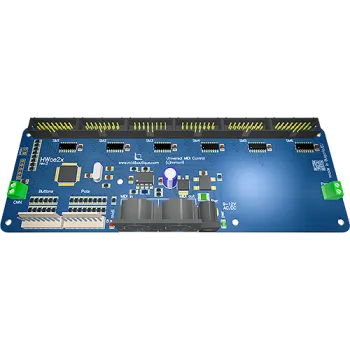

Midiboutique hwce2x MIDI encoder

Universal User-programmable Console MIDI encoder

• 6 scanmatrices, each 64 scanpoints (for keys and buttons) - keymux64 and sm8x8 compatible
• 8 analog inputs for continuous control (reading potentiometers or external control voltage)
• 6 additional parallel inputs for passive discrete control (reading buttons, switches or external TTL voltage)
• standard MIDI output (DIN5)
• user-programmable MIDI message of up to 32 bytes for each On/Off/Change event
• MIDI Merge input (DIN5, optoinsulated)
• on-board diode bridge and voltage regulator - just apply 9-12V AC/DC from adaptor or battery
• NOTES about user programming:
  • all programming is done by dedicated SysEx messages, format described in documentation
  • programmable features are permanently memorized in non-volatile memory
  • an convenient MS-Windows-based application hwce2prg for programming is free downloadable (for boards made before 10.2017)
  • UpSet and UpSetEx programming utilies for Windows (for boards made since 10.2017, using new programming protocol), free
